In real television program material objects move around before a fixed camera or the camera itself moves. Motion compensation is a process which effectively measures motion of objects from one picture to the next so that it can allow for that motion when looking for redundancy between pictures. Figure 1.9 shows that moving pictures can be expressed in a three-dimensional space which results from the screen area moving along the time axis. In the case of still objects, the only motion is along the time axis. However, when an object moves, it does so along the optic flow axis which is not parallel to the time axis. The optic flow axis is the locus of a point on a moving object as it takes on various screen positions.
.bmp)

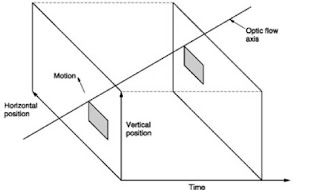

Figure 1.9: Objects travel in a three dimensional space along the optic flow axis which is only parallel to the timeaxis if there is no movement.
It will be clear that the data values representing a moving object change with respect to the time axis. However, looking along the optic flow axis the appearance of an object only changes if it deforms, moves into shadow or rotates. For simple translational motions the data representing an object are highly redundant with respect to the optic flow axis. Thus if the optic flow axis can be located, coding gain can be obtained in the presence of motion.
A motion-compensated coder works as follows. A reference picture is sent, but is also locally stored so that it can be compared with another picture to find motion vectors for various areas of the picture. The reference picture is then shifted according to these vectors to cancel inter- picture motion. The resultant predicted picture is compared with the actual picture to produce a prediction error also called a residual. The prediction error is transmitted with the motion vectors. At the receiver the reference picture is also held in a memory. It is shifted according to the transmitted motion vectors to re-create the predicted picture and then the prediction error is added to it to re-create the original.
Figure 1.9: Objects travel in a three dimensional space along the optic flow axis which is only parallel to the timeaxis if there is no movement.It will be clear that the data values representing a moving object change with respect to the time axis. However, looking along the optic flow axis the appearance of an object only changes if it deforms, moves into shadow or rotates. For simple translational motions the data representing an object are highly redundant with respect to the optic flow axis. Thus if the optic flow axis can be located, coding gain can be obtained in the presence of motion.
A motion-compensated coder works as follows. A reference picture is sent, but is also locally stored so that it can be compared with another picture to find motion vectors for various areas of the picture. The reference picture is then shifted according to these vectors to cancel inter- picture motion. The resultant predicted picture is compared with the actual picture to produce a prediction error also called a residual. The prediction error is transmitted with the motion vectors. At the receiver the reference picture is also held in a memory. It is shifted according to the transmitted motion vectors to re-create the predicted picture and then the prediction error is added to it to re-create the original.
In prior compression schemes the predicted picture followed the reference picture. In MPEG this is not the case. Information may be brought back from a later picture or forward from an earlier picture as appropriate.
.bmp)
1.7.4 Film-originated video compression Film can be used as the source of video signals if a telecine machine is used. The most common frame rate for film is 24 Hz, whereas the field rates of television are 50 Hz and 60 Hz. This incompatibility is patched over in two different ways. In 50 Hz telecine, the film is simply played slightly too fast so that the frame rate becomes 25 Hz.
Then each frame is converted into two television fields giving the correct 50 Hz field rate. In 0 Hz telecine, the film travels at the correct speed, but alternate frames are used to produce two fields then three fields. The technique is known as 3:2 pulldown. In this way two frames produce five fields and so the correct 60 Hz field rate results. The

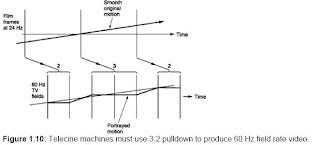

motion portrayal of telecine is not very good as moving objects judder, especially in 60 Hz systems. Figure 1.10shows how the optic flow is portrayed in film-originated video.
When film-originated video is input to a compression system, the disturbed optic flow will play havoc with the motion-compensation system. In a 50 Hz system there appears to be no motion between the two fields which have originated from the same film frame, whereas between the next two fields large motions will exist. In 60 Hzsystems, the motion will be zero for three fields out of five.
With such inputs, it is more efficient to adopt a different processing mode which is based upon the characteristics of the original film. Instead of attempting to manipulate fields of video, the system de-interlaces pairs of fields in order to reconstruct the original film frames. This can be done by a fairly simple motion detector. When substantial motion is measured between successive fields in the output of a telecine, this is taken to mean that the fields have come from different film frames. When negligible motion is detected between fields, this is taken to indicate that the fields have come from the same film frame.
In 50 Hz video it is quite simple to find the sequence and produce deinterlaced frames at 25 Hz. In 60 Hz 3:2pulldown video the problem is slightly more complex because it is necessary to locate the frames in which three fields are output so that the third field can be discarded, leaving, once more, de-interlaced frames at 25 Hz. Whilst it is relatively straightforward to lock-on to the 3:2 sequence with direct telecine output signals, if the telecine material has been edited on videotape the 3:2 sequence may contain discontinuities. In this case it is necessary to provide a number of field stores in the de-interlace unit so that a series of fields can be examined to locate the edits. Once telecine video has been de-interlaced back to frames, intra- and inter-coded compression can be employed using frame-based motion compensation.
MPEG transmissions include flags which tell the decoder the origin of the material. Material originating at 24 Hz but converted to interlaced video does not have the motion attributes of interlace because the lines in two fields have come from the same point on the time axis. Two fields can be combined to create a progressively scanned frame.
In the case of 3:2 pulldown material, the third field need not be sent at all as the decoder can easily repeat a field from memory. As a result the same compressed film material can be output at 50 or 60 Hz as required.
Recently conventional telecine machines have been superseded by the datacine which scans each film frame into a pixel array which can be made directly available to the MPEG encoder without passing through an intermediate digital video standard. Datacines are used extensively for mastering DVDs from film stock.
Then each frame is converted into two television fields giving the correct 50 Hz field rate. In 0 Hz telecine, the film travels at the correct speed, but alternate frames are used to produce two fields then three fields. The technique is known as 3:2 pulldown. In this way two frames produce five fields and so the correct 60 Hz field rate results. The
motion portrayal of telecine is not very good as moving objects judder, especially in 60 Hz systems. Figure 1.10shows how the optic flow is portrayed in film-originated video.
When film-originated video is input to a compression system, the disturbed optic flow will play havoc with the motion-compensation system. In a 50 Hz system there appears to be no motion between the two fields which have originated from the same film frame, whereas between the next two fields large motions will exist. In 60 Hzsystems, the motion will be zero for three fields out of five.
With such inputs, it is more efficient to adopt a different processing mode which is based upon the characteristics of the original film. Instead of attempting to manipulate fields of video, the system de-interlaces pairs of fields in order to reconstruct the original film frames. This can be done by a fairly simple motion detector. When substantial motion is measured between successive fields in the output of a telecine, this is taken to mean that the fields have come from different film frames. When negligible motion is detected between fields, this is taken to indicate that the fields have come from the same film frame.
In 50 Hz video it is quite simple to find the sequence and produce deinterlaced frames at 25 Hz. In 60 Hz 3:2pulldown video the problem is slightly more complex because it is necessary to locate the frames in which three fields are output so that the third field can be discarded, leaving, once more, de-interlaced frames at 25 Hz. Whilst it is relatively straightforward to lock-on to the 3:2 sequence with direct telecine output signals, if the telecine material has been edited on videotape the 3:2 sequence may contain discontinuities. In this case it is necessary to provide a number of field stores in the de-interlace unit so that a series of fields can be examined to locate the edits. Once telecine video has been de-interlaced back to frames, intra- and inter-coded compression can be employed using frame-based motion compensation.
MPEG transmissions include flags which tell the decoder the origin of the material. Material originating at 24 Hz but converted to interlaced video does not have the motion attributes of interlace because the lines in two fields have come from the same point on the time axis. Two fields can be combined to create a progressively scanned frame.
In the case of 3:2 pulldown material, the third field need not be sent at all as the decoder can easily repeat a field from memory. As a result the same compressed film material can be output at 50 or 60 Hz as required.
Recently conventional telecine machines have been superseded by the datacine which scans each film frame into a pixel array which can be made directly available to the MPEG encoder without passing through an intermediate digital video standard. Datacines are used extensively for mastering DVDs from film stock.
